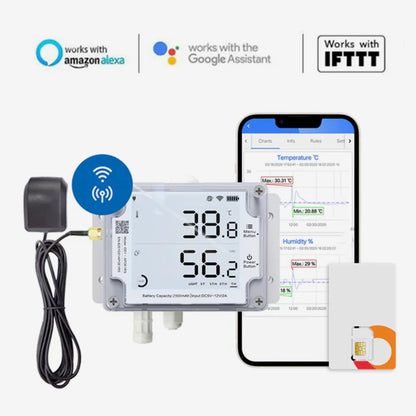

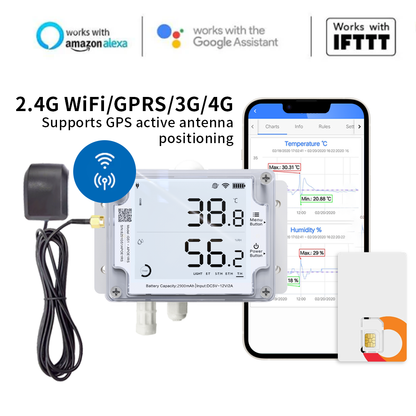

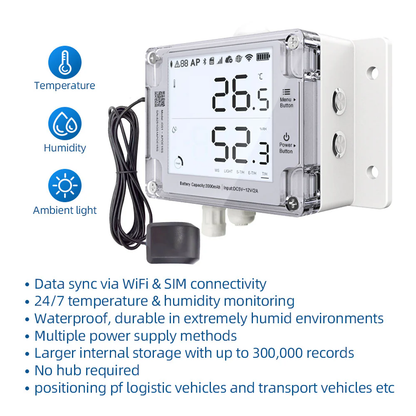

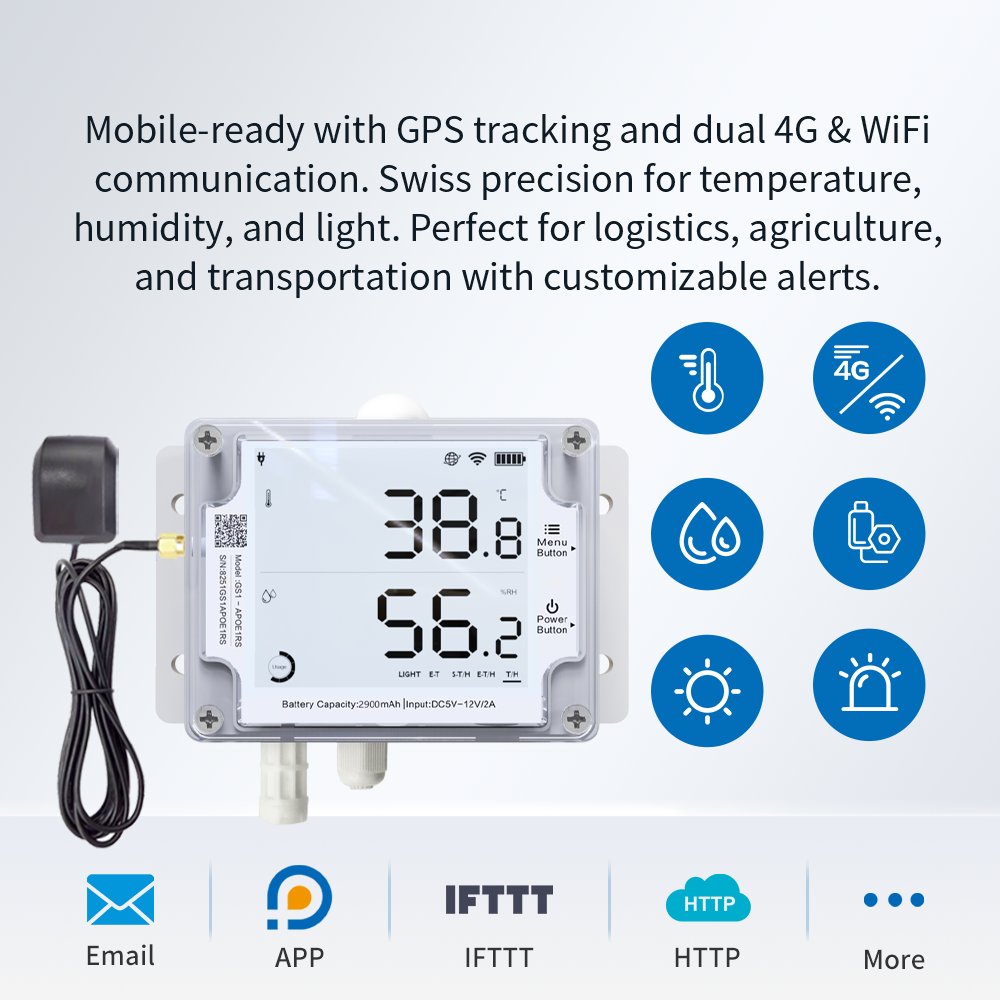

The UbiBot GS1-PL4G1RS offers advanced monitoring capabilities with built-in GPS tracking, making it ideal for mobile or remote environments. Whether monitoring environmental conditions on the move or in areas without stable WiFi, the device’s 4G and WiFi dual-mode communication ensures constant connectivity. Track and trace movement via GPS while simultaneously monitoring temperature, humidity, and light with Swiss-grade precision.

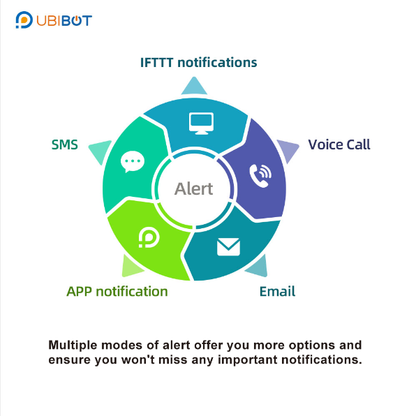

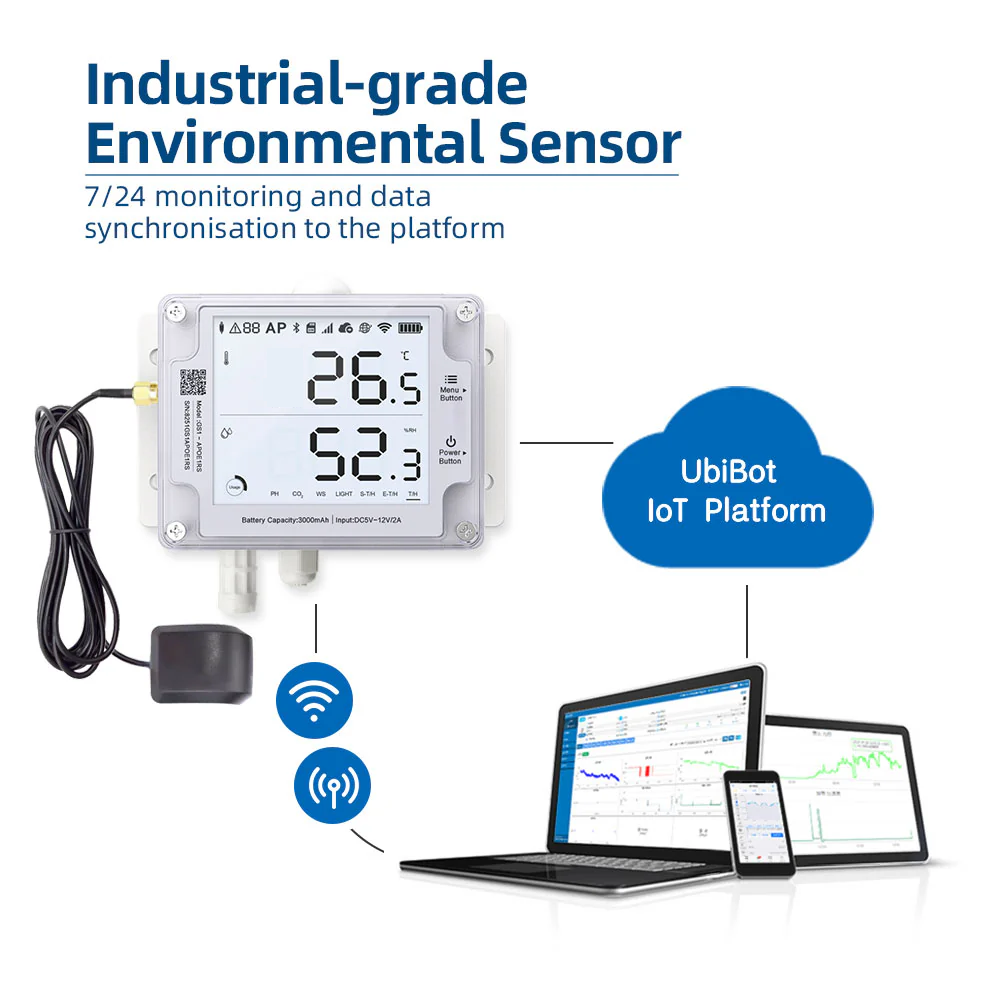

This industrial-grade sensor provides real-time alerts, 200MB of free cloud storage, and versatile power options, making it perfect for logistics, agriculture, and transportation industries. The RS485 interface allows for external probes, further expanding the device’s monitoring capabilities.

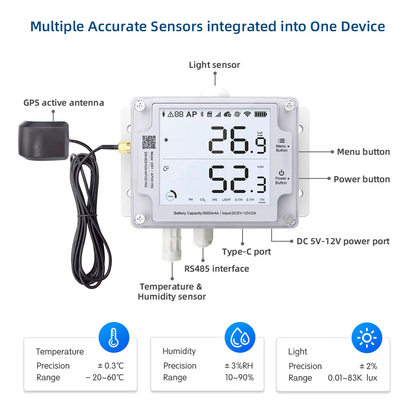

Measurement Range
Temperature
|
-4°F to 140°F (-20°C to 60°C)
|
Humidity
|
10% to 90% RH (non-condensing)
|
Ambient Light
|
0 to 83,000 lux
|
Accuracy
|
Temperature ±0.2°C, Humidity ±2%, Light ±2%
|
Memory
|
300,000 sensor records
|
Network Connection
WiFi
|
2.4GHz, channels 1-13 (5GHz not supported)
|
Mobile Networks
LTE-FDD
|
B1/B2/B3/B4/B5/B7/B8/B12/B13/B18/B19/B20/B25/B26/B28/B66
|
LTE-TDD
|
B34/B38/B39/B40/B41
|
WCDMA
|
B1/B2/B4/B5/B6/B8/B19
|
GSM
|
850/900/1800/1900 MHz
|
GNSS
|
GPS, GLONASS, BeiDou, Galileo, QZSS
|
Physical Specifications
Material
|
Flame-resistant ABS + PC
|
Dimensions
|
11.5 x 9 x 5.5 cm
|
Weight
|
450g (±3g)
|
Display
|
4-inch screen
|
Ports
|
Type-C USB, 3.5mm Audio
|
Power
|
2900mAh Lithium battery, Type-C 5V, DC 12V (not included)
|

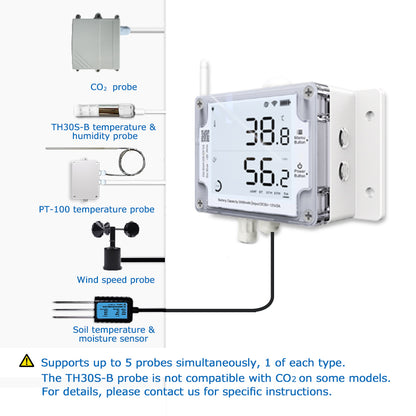

External probes supported
Supporting TH30S-B, Soil Probe, PT-100, Wind Speed Sensor, CO2 Probe; only one of each type can be connected at a time. GS1-PL4G1RS-1DS also supports DS18B20-Audio Temperature Probe, while Wind Speed Sensor is incompatible with DS18B20-Audio Temperature Probe.
One single pack includes

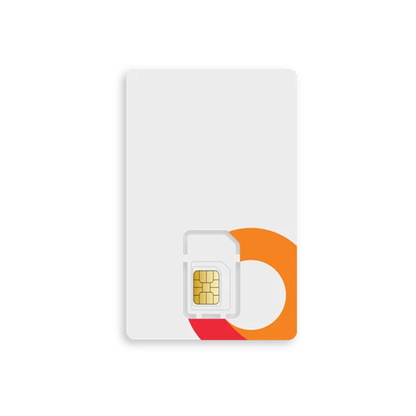

1 x GS1-PL4G1RS device; 1 x UbiBot Global SIM Card; 1 x external BD GPS Active Antenna; 1 x manual book; 1 x Type-C USB cable
