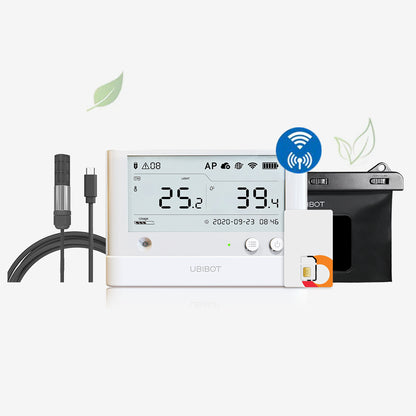

The device included in this bundle is WiFi and Mobile Network model: The device can connect to both 2.4GHz WiFi router network and mobile GPRS/3G/4G networking using a SIM card. We provide a UbiBot Global SIM card for each device for free, please see details below.

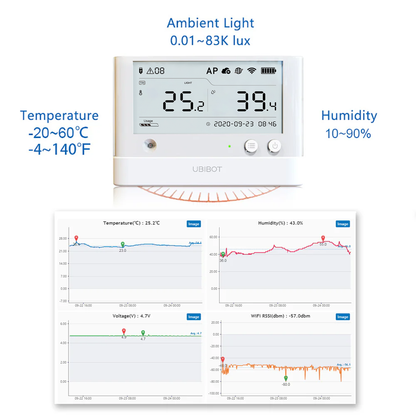

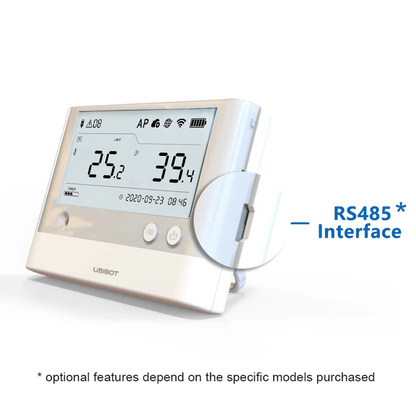

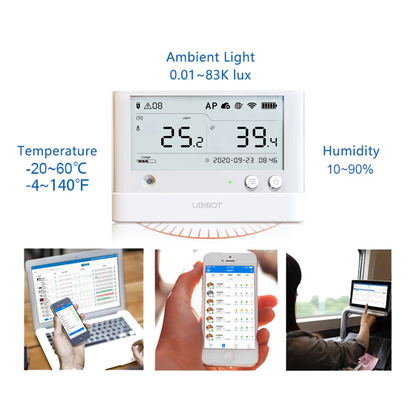

UbiBot® WS1 Pro is a state-of-the-art environmental monitoring system that leverages the latest IoT technologies. Collect environmental data in real time and automatically sync all the data to the UbiBot®IoT Platform using WiFi. The clear 4.4’’ screen allows you to instantly view the latest data. You can also access your device readings in real time from anywhere in the world via our App or using a browser. The embedded RS485 interface ensures that you can use the external probe even in the most extreme conditions.

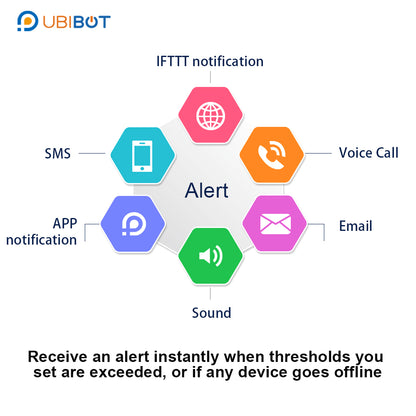

Our cloud-based IoT platform offers advanced data analysis and management. Configure all of your devices in one single UbiBot account by using the UbiBot App. It also allows you to setup real-time notifications — if a metric goes outside the range you specify, the platform will notify you through the app, email, SMS text, voice call and HTTP, allowing you to respond promptly before costly damage happens. Please note that charges may apply to SMS text and voice call alert modes. The costs related to these two alert modes will be deducted from the balance of the credits in your account. The IoT platform gives users access to both the real-time data and history via our mobile app or any web browser. We have partnered with IFTTT (If This Then That) to allow you to build custom links with other smart devices.
The device can store over 300,000 records in its internal memory, which can protect your data against network failure. Even if the network fails, UbiBot WS1 Pro still stores readings, thus ensuring there are no gaps in the data history.
The data sync interval can be set by you. This allows you to balance battery life against frequency of data capture. With the default data sync interval of 15 minutes, using WiFi connection, the device has a battery life of up to 4-6 months using 4 AA alkaline batteries.
We provide a UbiBot Global SIM Card for each device for free:

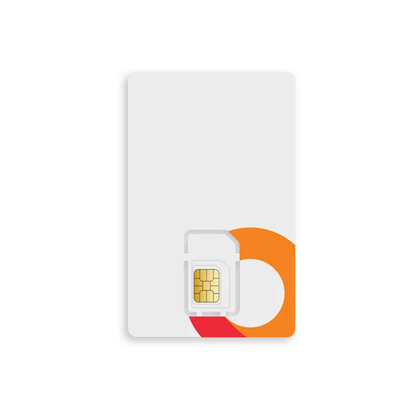

UbiBot Global SIM is a customized SIM card used for IoT devices.
It's mainly designed for UbiBot series devices, such as GS1-AL4G1RS, WS1Pro WiFi and SIM version, Smart Plug, etc. It covers more than 100 countries and regions around the world. To check if your local carrier is covered, please click here.
Our SIM card also supports other IoT devices, not only UbiBot. A mobile network helps to transfer data when WiFi is not available, allowing you to receive data remotely no matter where you are in the world.
Please go to our web console (console.ubibot.com) to activate the SIM card and top up your credits for mobile data traffic.
Traffic Plan Price List:
How to configure UbiBot Global Sim Card:
https://www.ubibot.com/faqs/3979/super-sim-configuration/
External Probe Selection:

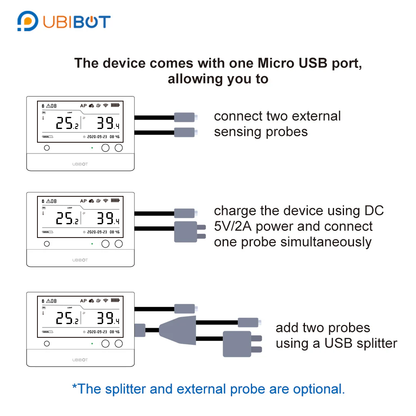

- UbiBot WS1 Pro has two micro USB ports for connecting external probes or USB power-supply.
- Each of micro USB port supports 1 x external DS18B20 temperature probe. Temperature range and specifications can be found here.
- The lower micro USB port also supports one of the following three probes at a time:

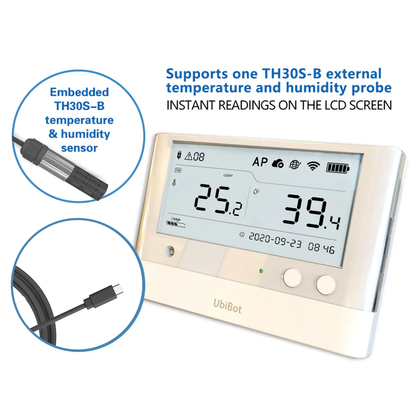

TH30S-B temperature and humidity probe
Soil Temperature and Moisture Sensor
PT 100 Industrial-grade Temperature Probe
- We recommend buying On-board Port Splitter (One Male to Two Female) if you want to use external USB power supply and two external probes at the same time.

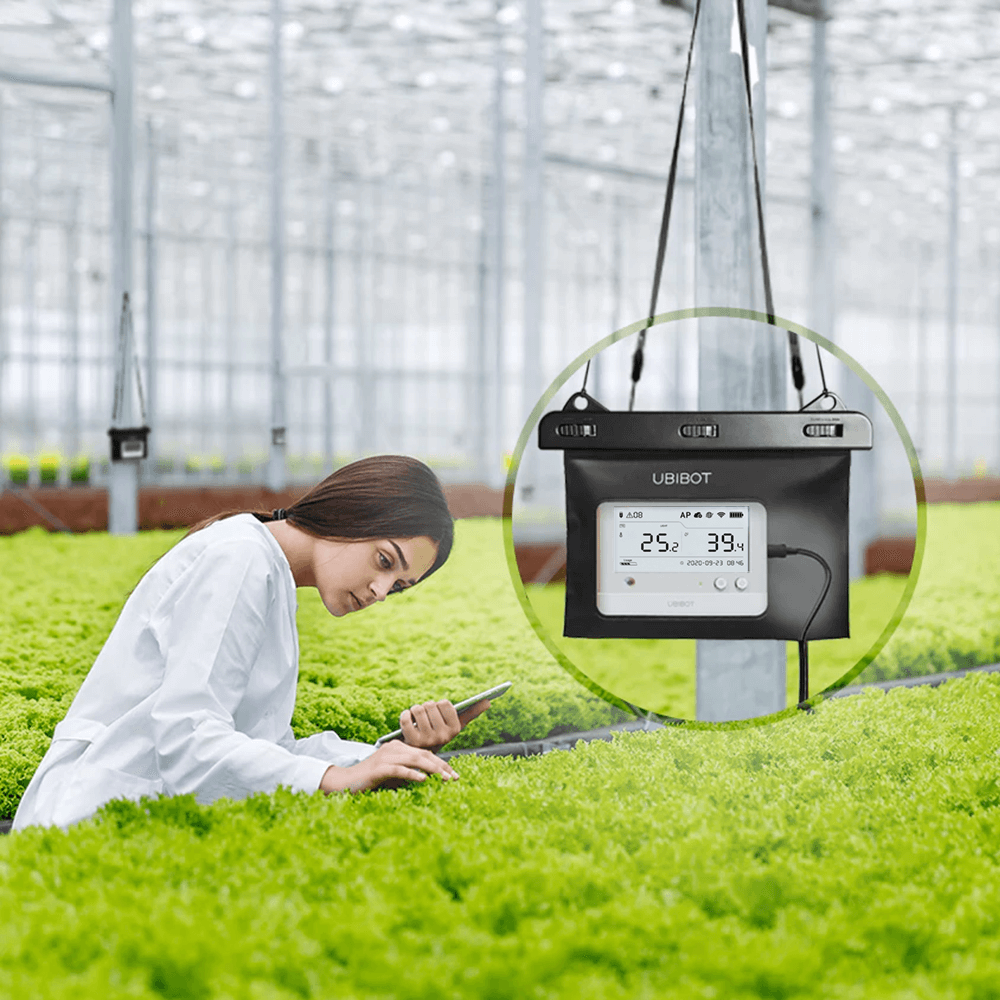

Water-Resistant / Rainproof Option for Outdoors:
The WS1 Pro is not water resistant. For outdoor usage, we suggest to use UbiBot water-resistant case.
